Johanna Beach

I’m a bit late on this post as we spent the Australia Day weekend at an amazing spot in the Otways called Johanna Beach.

A free camping spot that is very popular in the summer months and long weekends.  It gave us a good go and testing out the recent solar panel addition which worked brilliantly for the whole five days we were there.

The view from our van.

We were lucky enough that we could arrive there on the Thursday before the long weekend to get a spot.  By mid afternoon the place was full to the gills. Standing room only which meant anyone with a tent or caravan had nowhere to stay.  Only backpackers with a desire to camp on the side of the tracks in and out of the camp ground braved the overnight stay and then scurried off early the next morning.

The Girls at the lookout

Johanna beach is a gem.  If you get the chance to go when the crowds are gone on a normal weekend out of the summer months you would most likely have the place to yourself.  It could be wild weather but it’s a beautiful spot.

The beach from the lookout

With only a short stroll to the beach, it may only be your footsteps you see in the sand. There is so much to do and see in the area or it’s a great place to just waste the day away.

The mist rolls in.

If you decide to visit the campsite and your towing a van, make sure you drive in on Red Johanna Rd.  Blue Johanna Rd is not good for vans.

Sunset

Advertisement

Solar Modification Pt. 2

It’s been incredibly hot this week in Victoria.  We have more days than I’d like to remember above 40 and I’m so glad I was able to complete this job before the heat hit.  In fact the amount of sun we are getting is powering up the battery perfectly.  I just wish I had the van out camping to give the setup a good run. Anyway onto part two of the install.

I did this in two steps.  I mounted the panels to the roof first.  I used a whole tube of Sikaflex 252 to ensure they aren’t going anywhere.  That stuff is amazing and should do the job.

A couple of days later we took the plunge and drilled through the roof into one of the wardrobes.

I drilled a 1 mm pilot hole so we could make sure that it was going to go exactly where we wanted it to go.  The wardrobe has a “channel” that the cable could run down and never been seen or get in the way.

As always measure twice and cut once.  We confirmed we had the correct spot but I needed to cut away quite a bit of the original silicone in order for the cable entry box to fit snugly.

Then it was just a matter of drilling the large hole through the roof.  As always it’s a little daunting drilling into your van but we had made sure it was the right spot.

Cable entry

The cables were inserted in the entry box and threaded through the hole in the roof.  We then ran the cables all the way to the battery and connected it to the battery so that we didn’t need to move them any further and we could silicon up the entry box.

I again used another heap of sikaflex to ensure no leaks and no movement of the entry box.  Placing a brick on top of the box also ensured that while the silicon cured it didn’t move.

Brick Weight

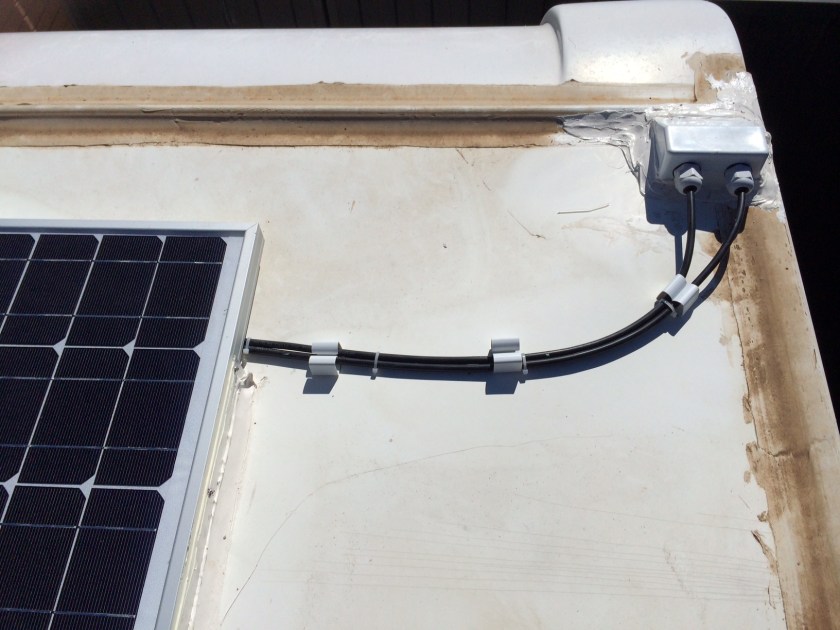

The next day the brick was removed and the cables tied and clipped to the roof to make sure it was all neat.

Cabling

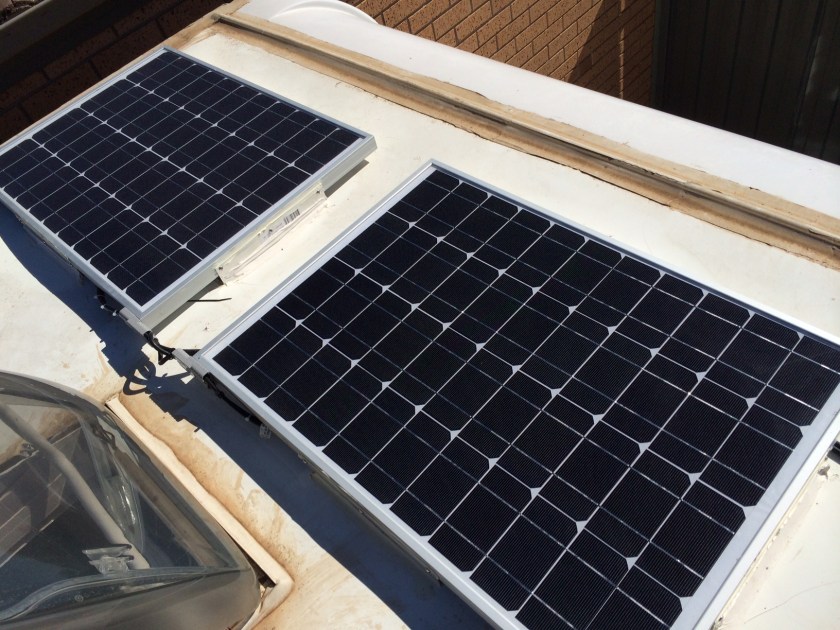

The two 50w panels mounted on the roof.

Fitted Panels

All up it cost less than $150 to put our panels on the roof.  Obviously we already had the panels and we had the REDARC BCDC 40A unit which has solar input.  I am very happy with the result and it’s keeping the battery completely full.  Within one day the REDARC unit had gone from Boost, through absorption and is now constantly on float.

Due to the REDARC unit being able to convert a lower voltage to a higher voltage it starts charging the battery a lot earlier in the day and stays charging later in the day.  I really don’t think we will ever need to increase the size of the panels.

Now I want to add another battery to the system. Ssshhhhh….don’t tell the better half.

Solar Modification Pt. 1

A couple of years ago we purchased an Evakool folding solar panel.  It’s a 100 watt panel with decent cables (connected to anderson plugs) and is very well built.  It has been a great panel and has got us out of a couple of sticky situations in its time.  I liked the fact I could position it in what ever direction i needed to get the battery charged.

I was always a bit concerned about roof mounted panels and how good they work if they were in shade etc but a friend of ours mounted his solar panels on the roof of his van and they are performing much better than I expected.

After recently installing a Redarc 12v BCDC 40 Amp battery charger in the van I’ve decided that it was time to mount a solar panel on the roof.

The combination of both devices would be more than enough to keep us topped up with power as we don’t tend to use heavy power consumption devices in the van.

I decided to dismantle the folding panel and mount it to the roof as I think 100 watt will still be ample for us.

The BCDC unit is designed to boost low voltages going into it from the solar panels into decent charging voltages for the battery so we should get more “daylight” hours from the panels.  We also don’t tend to stop for days on end at free camps so we shouldn’t need a huge power station setup on the roof.  We charge from the vehicle as we travel so we usually arrive with a full battery.

So with all these things considered, out with the tools and a new setup is born.

I pulled apart the folding panel removing hinges, latches. legs and handles.  I removed the solar regulator as the BCDC has it’s own built in regulator so no need for the panel mounted one.  The wiring was disconnected and then I was left with two 50 watt panels.

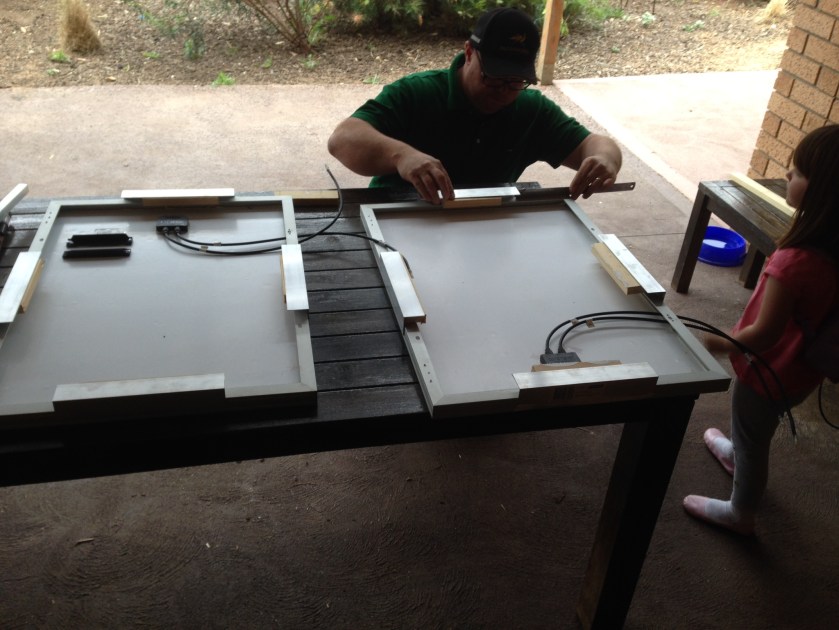

I used Sikaflex 252 to mount the brackets to each side of the panels.  The brackets are made from aluminium angle and I placed a block of wood under each so that I didn’t need to worry about measuring the gap.  Each bracket was glued into place and then three screws to hold it ensure its not going anywhere.

Mounting the Brackets

I then wired and mounted an Anderson plug to each panel so they can be easily plugged into when I run the cables into the van.  This may also give me options down the track to use the panel regulator elsewhere and plug something directly to a panel for an emergency.  It’s an option that may come in handy one day.

The panels ready for mounting on the roof

Ready to go on the roof.

Coming soon.  Solar Modification Pt. 2 – Mounting to the roof and wiring them to the BCDC charger.

And the winners are….

We are very excited to announce the winners of the Expander Pegs competition.

Drumroll please…..they are,

Toni – MANDURAH, WA

Robyn – BENDIGO, VIC

Susan – HERVEY BAY, QLD

Troy – TARNEIT, VIC

Chris – CHELTENHAM, VIC

We will get your peg packs to you in the post ASAP and can’t wait to here how you use them.  Thanks for entering the competition everyone and if you didn’t win please feel free to visit the Expander Pegs website to see where you can get your own set.
